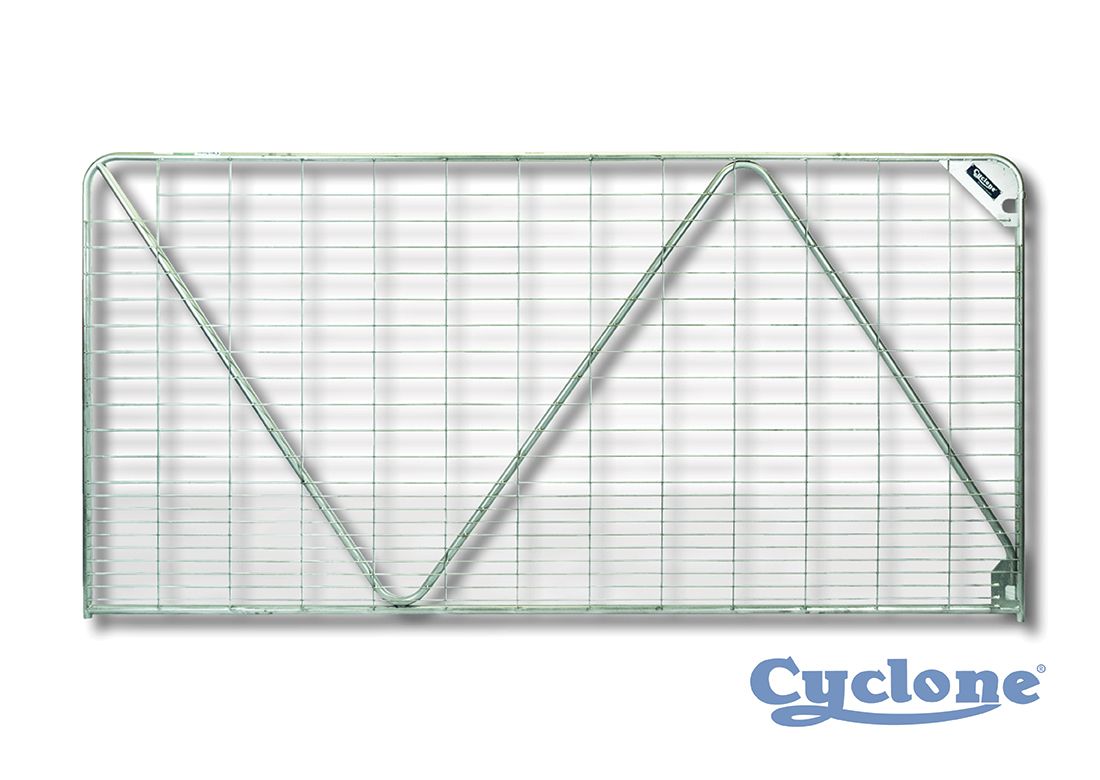

Cyclone N-Sure Exclusion Gates

Designed to reduce feral movement, the N-Sure 1500mm and 1800mm gates offer a solution for exclusion fencing applications.

Produced from 25NB hot dipped galvanised pipe, with a wall thickness of 2mm, and mesh spacing graduating from 32mm at the bottom of the gate, to a maximum of 100mm at the upper part of the gate (5mm wire thickness).

Welded collar attached at hinge end to increase compatibility with a broader range of gate hardware, including brooker hinges.

Top and bottom 3mm plate steel gusset adds vertical load carrying capacity at free swinging end of the gate, reducing gate sag increasing ability to absorb downward pressure from larger livestock.

Full notch weld construction for added strength.
